GPS Client

The GPS client reads position data and publishes it as points on a gps node. It supports three sources:

• Serial reads NMEA sentences directly from a receiver on a serial port.
• gpsd subscribes to the gpsd daemon over TCP. This is a good choice on a Linux system where gpsd already manages the receiver, where several processes need the same position, or where gpsd’s device detection and driver support are useful.
• Simulated generates a plausible track without any hardware, which makes it easy to develop rules, dashboards, and graphs.

All three sources publish the same points, so anything consuming the data works the same way no matter which source is configured.

Configuration

Select the source first. The remaining fields change to match it.

Serial

The client reopens the port automatically when a receiver is unplugged and plugged back in, so a USB receiver can be moved without restarting SimpleIoT.

The client reads the GGA, GSA, RMC, and VTG sentences and ignores the rest. A receiver reports one position across several of these, so the client collects a full cycle of sentences and publishes them together. Every point from one position therefore carries the same timestamp, which is what makes the data plottable on a map.

gpsd

The client reconnects with a growing delay whenever the daemon becomes unreachable. It also reports itself disconnected if no position arrives for ten seconds, because gpsd keeps the connection open when a receiver goes quiet or is unplugged.

Simulated

The heading drifts randomly within the configured rate, so the track wanders naturally instead of running straight or jumping between positions. Set the heading drift to 0 for a straight track.

Positions follow a great circle, so tracks behave correctly at high latitudes and when crossing the antimeridian.

The simulator continues from the node’s last published position, so changing the speed, the update period, or restarting SimpleIoT picks the track up where it left off rather than returning to the start. Switching a node from a hardware source to the simulator likewise continues from the last real position.

Two things send the simulated receiver back to the configured start position: pressing Reset location, and editing Start latitude, Start longitude, or Start heading, which moves the receiver to the position just entered.

The simulator reports a normal GPS fix rather than marking its data as simulated, so rules and dashboards behave exactly as they would with real hardware. The node’s source setting is what identifies the data as synthetic.

Debug Levels

The Debug level field controls how much the client logs. Every source logs connection changes and configuration problems whatever the level is set to.

Level 2 is the one to reach for when a receiver is connected but no position appears, since it names the sentence or report that could not be used. Levels 3 and above 4 behave the same as 2 and 4 respectively.

A new level takes effect on the next message. The source keeps running, so raising the level while chasing a problem leaves the serial port open, the gpsd session connected, and the simulated track where it is.

Level 4 is verbose. A receiver at the default one second period sends several sentences per fix, so expect a handful of lines every second. The simulator has no raw input to show, so it logs the points it generated for each fix instead, which is a way to watch a track advance without querying the node.

Published Points

A source publishes only what it actually reports. A receiver that sends no GSA sentences, for example, leaves fixType unset; no value is guessed for it.

Fix Type and Fix Quality

The three sources describe a fix in three different vocabularies, so the client normalizes them into two points. fixType covers whether the fix is 2D or 3D, which determines whether the altitude can be trusted. fixQuality covers which augmentation produced the fix, which determines how accurate the position is.

Both are stored as numbers rather than as text, which lets them be graphed and keeps them intact in databases that store only numeric values. The web UI displays them as labels.

fixType follows the gpsd encoding:

fixQuality follows the NMEA GGA encoding:

Values 7 and 8 are available through gpsd. The NMEA library SimpleIoT uses validates fix quality against the range 0 to 6, so a serial receiver reporting 7 or 8 is treated as reporting no fix. Both values are rare enough from real receivers that this is unlikely to come up in practice.

A Note on Altitude

The serial source reports altitude above mean sea level, taken from the GGA sentence. The gpsd source prefers gpsd’s altMSL field, which is the same measurement, and falls back to altHAE when that is all the daemon provides. altHAE is measured from the WGS84 ellipsoid instead, and the two differ by the local geoid separation, which reaches tens of meters in some parts of the world. If altitude accuracy matters for your application, check which field your gpsd version reports.

Storing and Graphing

Add a database node to store GPS points in InfluxDB or Victoria Metrics. All the numeric points listed above are stored normally.

Plotting a Track on a Map

Grafana’s Geomap panel needs latitude and longitude as two numeric fields on the same row. The GPS client stamps every point from one position with the same timestamp, which is what allows the two to be brought back together.

With InfluxDB, a Flux pivot() puts them into one row directly:

from(bucket: "siot")
  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
  |> filter(fn: (r) =>
    r._measurement == "points" and
    r._field == "value" and
    (r.type == "latitude" or r.type == "longitude"))
  |> filter(fn: (r) => r["node.description"] == "My GPS")
  |> pivot(rowKey: ["_time"], columnKey: ["type"], valueColumn: "_value")

Set the panel’s Map Layer to Coordinates, and the latitude and longitude fields to the pivoted columns.

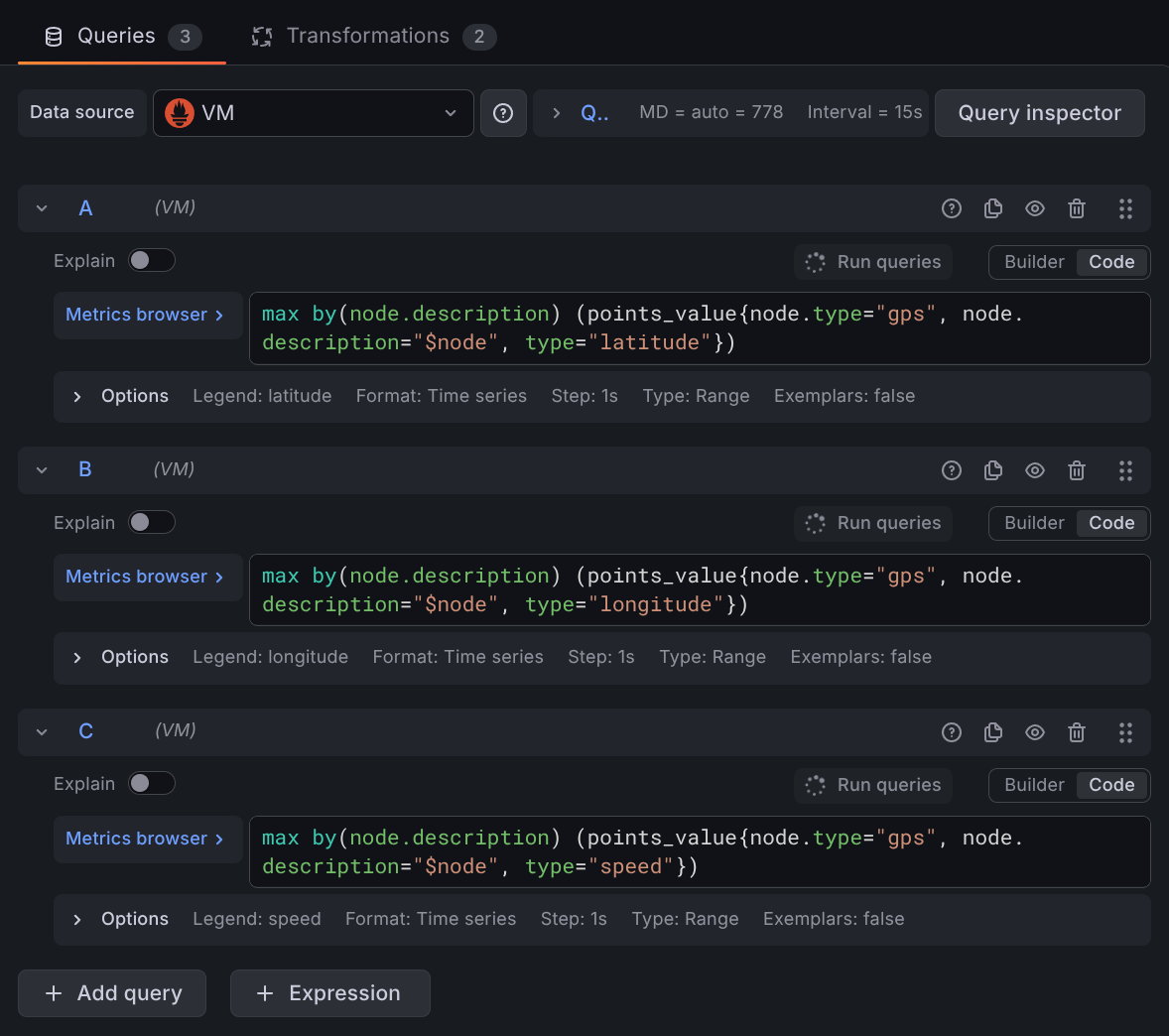

With Victoria Metrics, add one query per field. Set each query’s Legend to the field name, which is how the Geomap panel finds the coordinates later.

Each query selects one point type from the GPS nodes:

max by(node.description) (points_value{node.type="gps", node.description="$node", type="latitude"})
max by(node.description) (points_value{node.type="gps", node.description="$node", type="longitude"})
max by(node.description) (points_value{node.type="gps", node.description="$node", type="speed"})

$node is a dashboard variable holding the GPS node description, so one dashboard can serve several receivers. max by(node.description) collapses the result to one series per node.

The tag names the database client writes contain dots, as in node.type and node.description. Victoria Metrics accepts these as label names and they can be used directly in a query, as above.

Set Step to the GPS update rate, 1s in the example. A larger step samples the track instead of drawing every position.

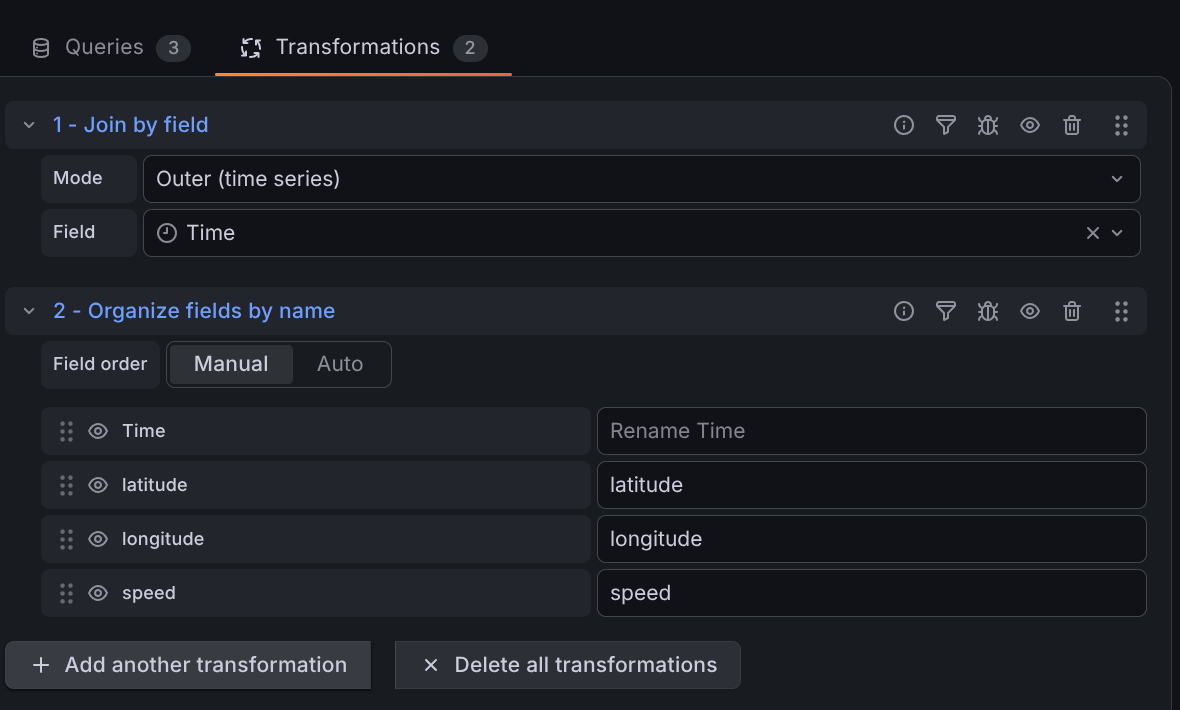

Then add two transformations:

1. Join by field in Outer (time series) mode on Time. This is where the shared timestamp matters: the separate series line up onto single rows only because every point in one fix carries the same time.
2. Organize fields by name, which sets the field order and confirms the names carried over from the query legends.

Finally, set the panel’s Map Layer to Coordinates. Grafana locates the latitude and longitude fields by name.

To display the fix codes as labels on a Grafana panel, add value mappings using the tables above.

Schema

Below is an export of a simulated GPS node:

children:
  - id: 8f2a1c4e-3b7d-4a91-b6e2-5c8d9f0a1b23
    type: gps
    points:
      - type: description
        text: Test track
      - type: disabled
      - type: gpsSource
        text: sim
      - type: simLatitude
        value: 40.0354
      - type: simLongitude
        value: -75.5198
      - type: simSpeed
        value: 12.0
      - type: simHeading
        value: 90.0
      - type: simHeadingRate
        value: 5.0
      - type: period
        value: 1.0
      - type: latitude
        value: 40.03567
      - type: longitude
        value: -75.52006
      - type: altitude
        value: 85.3
      - type: speed
        value: 12.0
      - type: heading
        value: 92.4
      - type: fixType
        value: 3.0
      - type: fixQuality
        value: 1.0
      - type: numSat
        value: 11.0
      - type: hdop
        value: 0.92
      - type: connected
        value: 1.0
